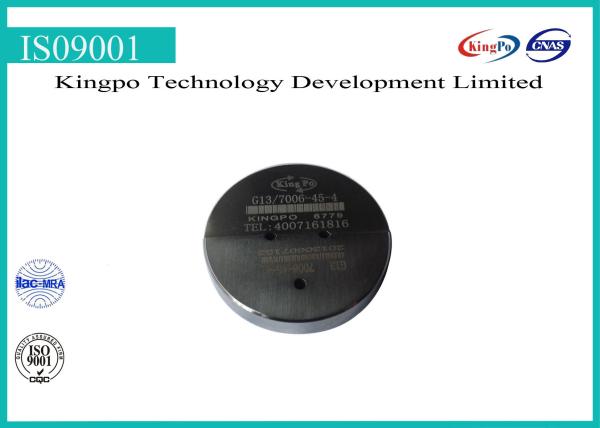

G13 lamp cap gauge | "GO" gauge for bi-pin cap on finished lamps G13-7006-45-4

Name: G13 lamp cap gauge quotGOquot gauge for bipin cap on finished lamps G137006454
Brand: Kingpo
Price: 1 USD

G13 lamp cap gauge | "GO" gauge for bi-pin cap on finished lamps G13-7006-45-4 Manufactures

Brand Name : Kingpo

Model Number : 7006-45-4

Certification : iso9001

Place of Origin : china dongguan

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Supply Ability : 1000 pcs per month

Delivery Time : 7 working days

Packaging Details : safety carton pack or plywood box

Material : Hardness Steel

Standard : IEC60061-3

HRC : C58 to C60

Contact Now

G13 lamp cap gauge | "GO" gauge for bi-pin cap on finished lamps G13-7006-45-4

Purpose: Purpose: to check dimensions E max.,F min.,F max.,and the combined pin diameter and displacement of pins (including bosses) of bi-pin caps G13 on finished lamps.

Testing: the pins of the caps on finished lamps shall enter the gauge at surface O and, when fully inserted, the surfaces of cap and gauge shall contact. In this position the end of the pins shall be co-planar with or project beyond surface X, but shall not project beyond surface Y. Each individual pin shall enter hole e1 at surface O until the face of the cap and the surface of the gauge contact.

G13 lamp cap gauge | "GO" gauge for bi-pin cap on finished lamps G13-7006-45-4

Related gauge:

"GO" GAUGE FOR BI-PIN CAP ON FINISHED LAMPS G13, 7006-44-4
