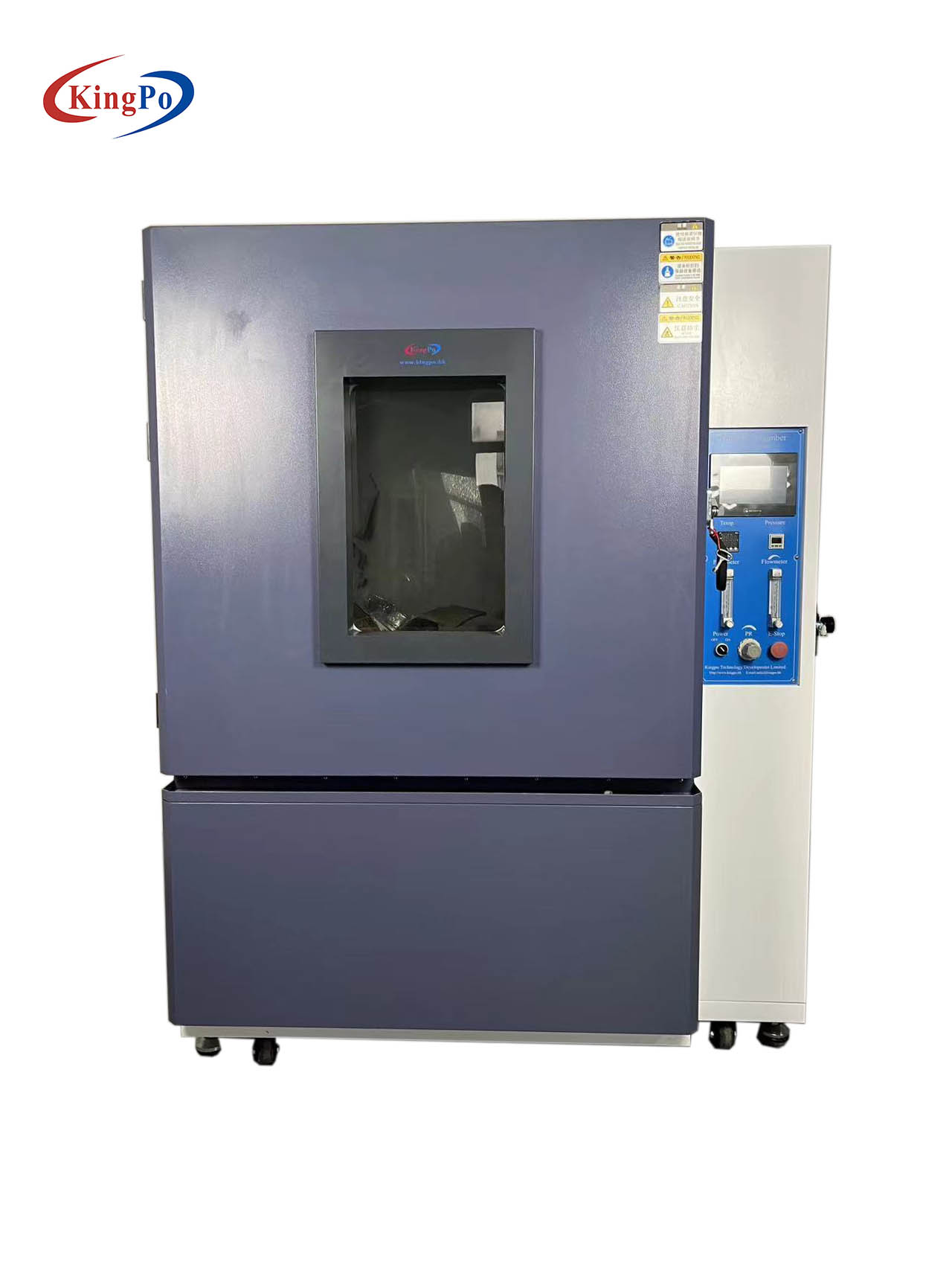

KP-DC1000A Settling Blowing Sand & Dust Test Chambers IEC60529

Name: KPDC1000A Settling Blowing Sand amp Dust Test Chambers IEC60529
Brand: KingPo
Price: 1 USD

KP-DC1000A Settling Blowing Sand & Dust Test Chambers IEC60529 Manufactures

Brand Name : KingPo

Model Number : KP-DC1000A

Certification : Calibration Certificate

Place of Origin : China

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Supply Ability : 20 units per month

Delivery Time : 30 working days

Packaging Details : safety carton pack or plywood box

Contact Now

IEC60529 Dust Chamber KP-DC1000A,Settling Dust Test Chambers,Blowing Sand & Dust Test Chambers

Dust Chamber KP-DC1000A

1. Use

Dust Test chamber is applicable to all kinds of auto parts do dust proof test, the test unit can be light, instrument, electrical dust cover, steering system, door lock, etc., and test product sealing.

2. Reference standards

IEC60529; IEC60598-1; IEC60068-2-68

3. Technical parameters

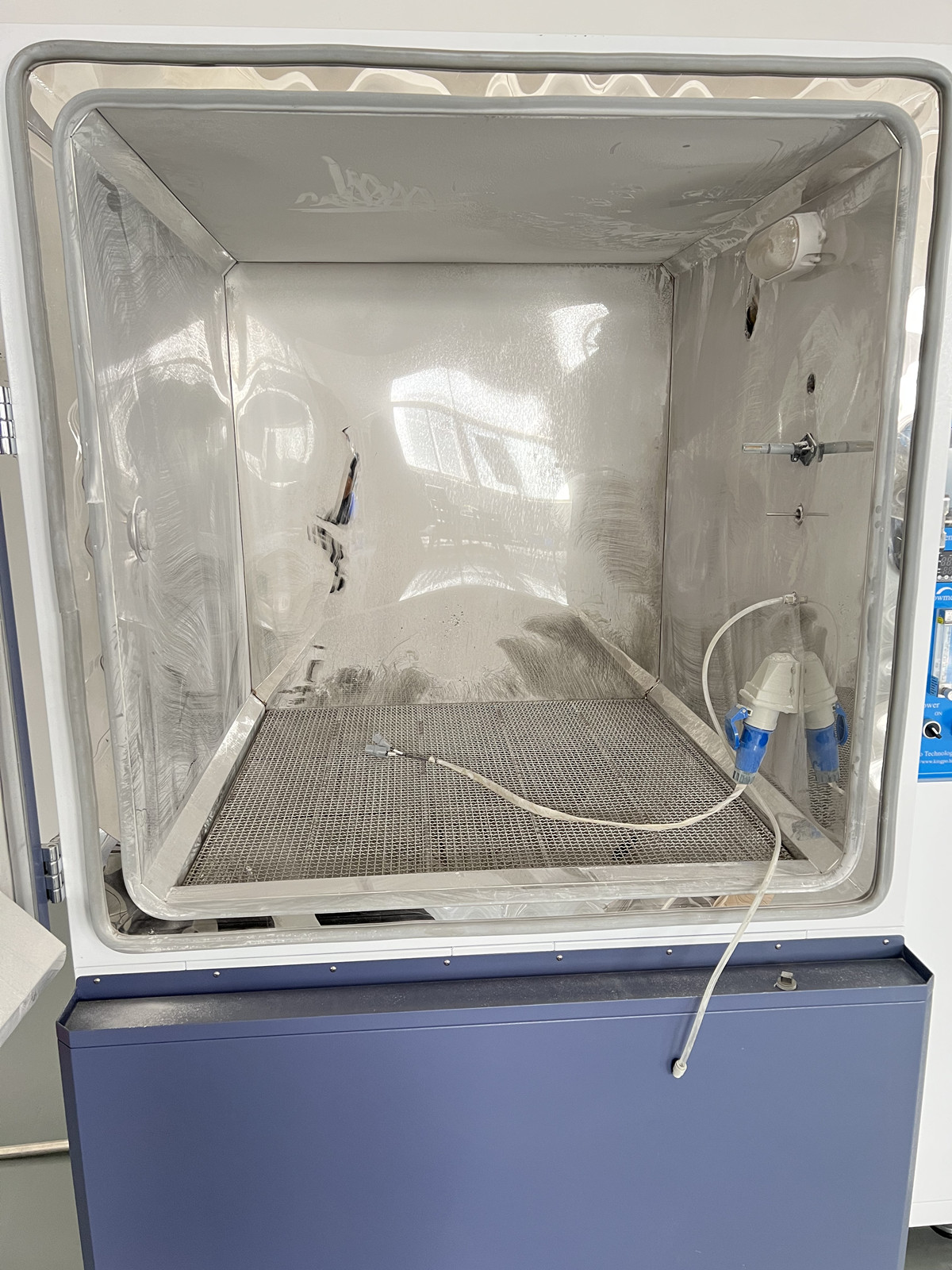

Internal dimension	W1000 * D1000 *H1000 mm
Dimension	W1600mmD1200mmH1950mm
Metal mesh diameter	50um
Talcum powder dosage	2Kg/m³-4Kg/m³
air velocity	No more than 2m/s
The Talcum powder amount	2kg/ m³
Internal material	sus304 corrosion resistant plate
External material	cold plate rust proof and plastic spraying treatment
Door	tempered glass door
Vacuum pump	0~30Kpa
Temperature control	RT~60℃
Sample weight	≤100KG
Timing range	0s～999h99m99s
Load cycle control	0s～999h99m99s
Working noise	≤70db @ 1 meter away from machine

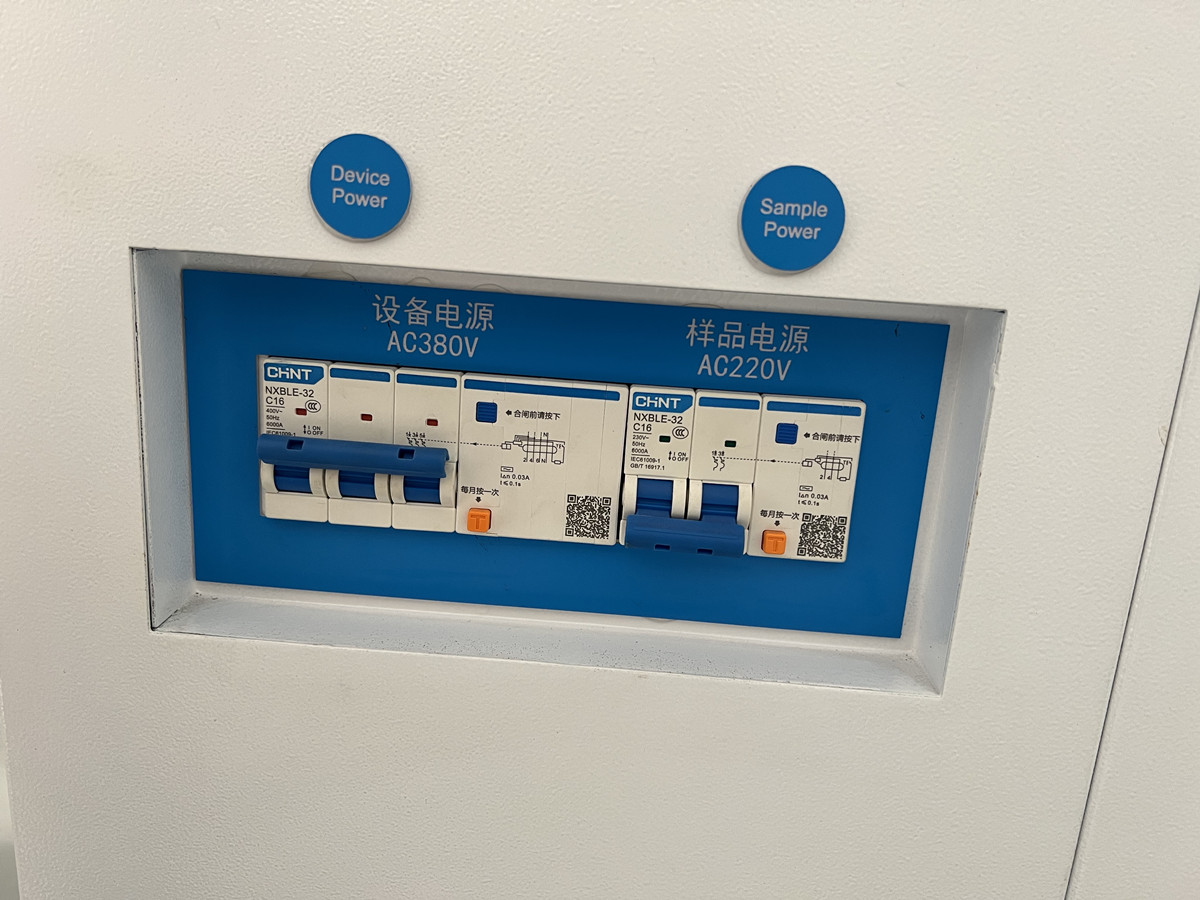

Dustproof plug base, supply	for AC 220V 20A power, the constant control timer to control power on or power off
Power	AC 380V 50Hz 3.0KW
